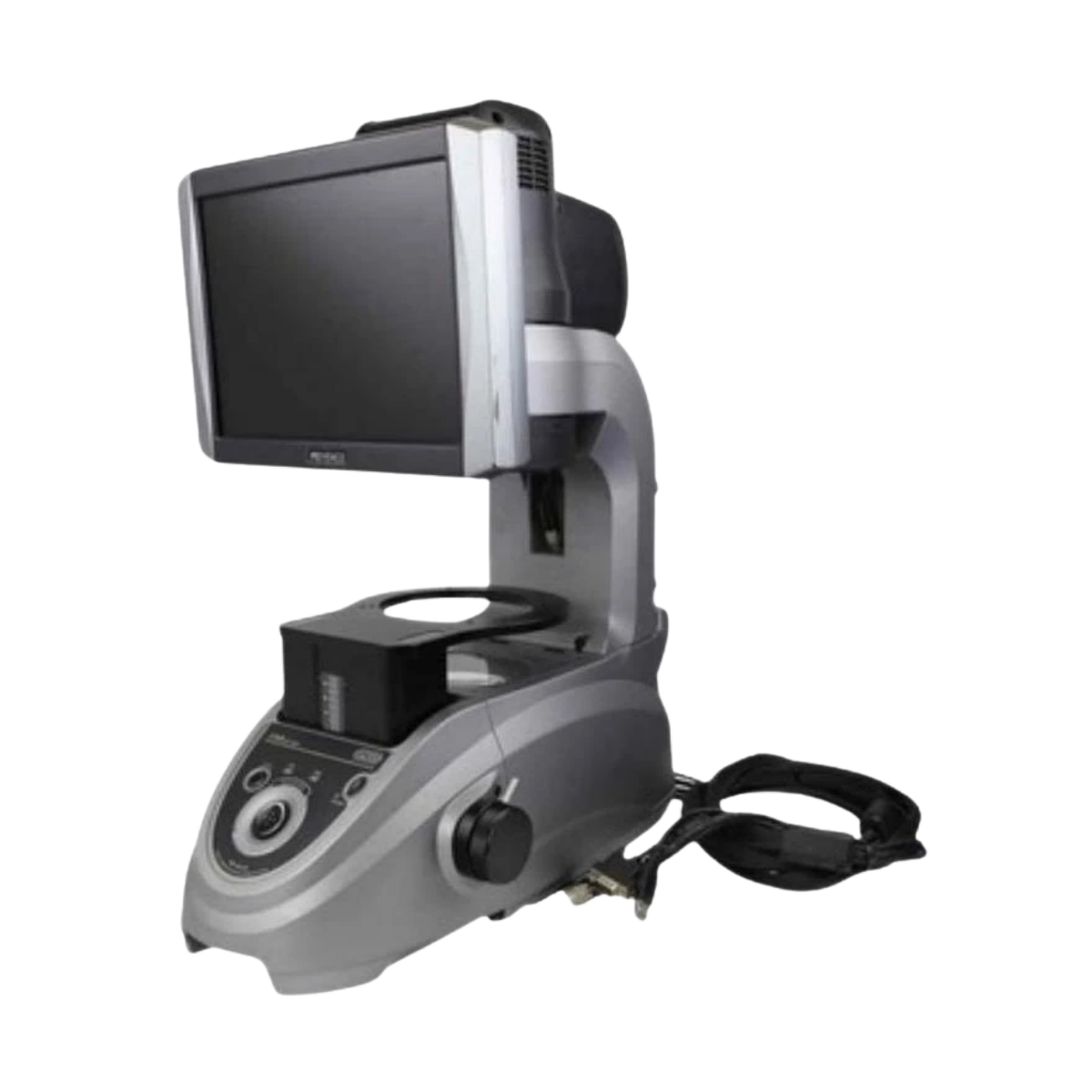

The Keyence IM-6020 Image Dimension Measuring System is a high-speed, non-contact optical metrology solution designed for rapid and accurate dimensional inspection of mechanical and electronic components. Using high-resolution imaging and automated measurement algorithms, the IM-6020 instantly captures multiple dimensions at once, eliminating manual measurement variability and significantly increasing quality control throughput.

Key Features

1. One-touch image-based dimensional measurement for fast inspection.
2. Non-contact optical measurement eliminates part deformation or damage.
3. High-resolution camera and telecentric optics for precise edge detection.
4. Automatically measures multiple dimensions in a single capture.
5. Intuitive software with automated reporting and SPC data export.
6. Supports a wide range of part sizes and shapes.
7. Ideal for in-process and final quality inspection environments.

Applications / Use Cases

1. Dimensional inspection of machined mechanical parts.
2. Quality control for stamped, molded, and laser-cut components.
3. Electronics and precision component measurement.
4. Incoming inspection and final production verification.
5. Automotive, aerospace, medical device, and electronics manufacturing.

Benefits

1. Dramatically reduces inspection time compared to manual tools.
2. Eliminates operator-to-operator measurement variation.
3. Improves consistency and traceability of quality data.
4. Prevents damage to delicate parts with non-contact measurement.
5. Increases throughput in quality control and production environments.
6. Enhances overall manufacturing quality and process control.
